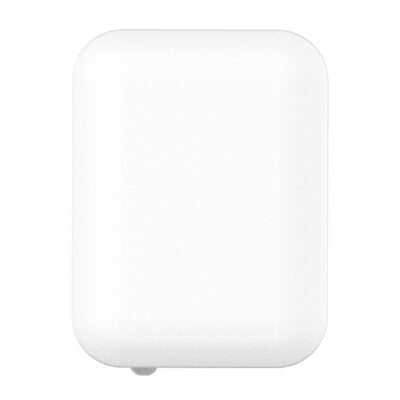

The IM530-M Outdoor CPE is an easy-to-deploy, high performance 5G/LTE CPE feature sad dedicated 2.5 Gigabit Ethernet port and 5G/LTE mobile broadband for maximum redundancy and flexibility for intense Internet applications in remote areas. Rugged design and flexible deployment options combined with ease of use make the OG530-M ideal for both large-scale and individual deployments.
The device seamlessly combines 5G and LTE connections or switches between them based on reception quality, ensuring reliable high-speed internet in diverse environments.
Delivers up to 4.67Gbps throughput, enabling fast downloads, smooth streaming, and support for multiple users simultaneously.

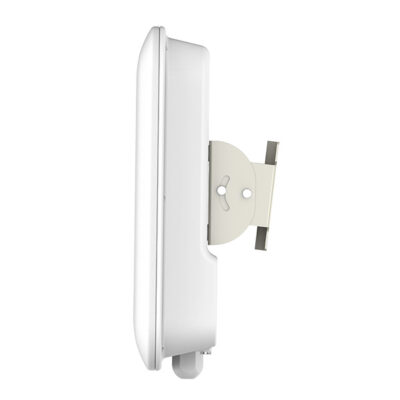

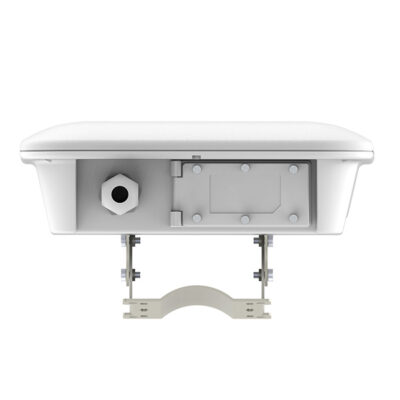

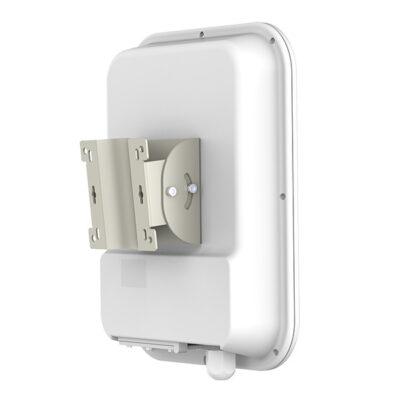

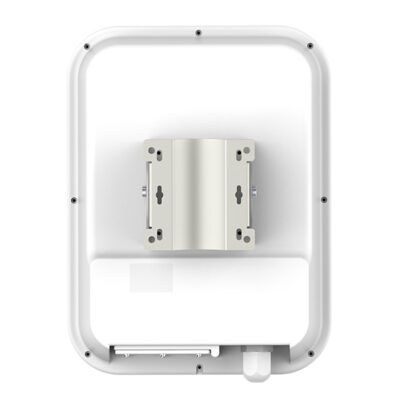

Built to withstand extreme weather conditions, with water and dust resistance, and can endure wind speeds up to 210kph. Supports pole/wall mounting for flexible deployment.
Includes a 2.5 Gigabit Ethernet port and complies with IEEE 802.3af PoE standards for power and data delivery over a single cable.
| General | |
| Chipset | MediaTek T750 |
| Device Interfaces | • 1x 2.5G bps GE Ethernet port • 6xLED indicator PWR, LAN, 5G, Signal Strength LEDs*3 • 1.8/3V SIM card slot (2FF) • Reset button |
| Standards | • IEEE 802.3i 10Base Ethernet • IEEE 802.3u Fast Ethernet • IEEE 802.3ab Gigabit Ethernet • IEEE 802.3bz 2.5Gigabit Ethernet • IEEE 802.3af 12.95W POE |
| 5G / LTE Standards | • Release 16, Cat.19 • 5G NR |
| 5G / LTE Frequency Support |
• 5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/ n77/n78 • 5G NR NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/ n77/n78 • LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32 • LTE TDD: B38/B40/B41/B42/B43 • WCDMA: B1/B5/B8 |
| 5G / LTE Throughput | • 5G SA Sub-6 : 4.67Gbps (DL) / 2.5Gbps (UL) • 5G NSA Sub-6: 3.74Gbps (DL) / 1.46Gbps (UL) • LTE: 1.6Gbps (DL) / 211Mbps (UL) |
| MIMO | DL: 4 × 4 UL: 2 × 2(only support 5G SA) |
| Output Power | 23dBm±2dBm |
| Antenna | 3~7dBi Internal directional antenna |
| Software Features | |
| Device Management | • HTTPS Management Interfaces • Multi-Language Web Management • Standard Based TR-069 Management • TR-181 Device Data Model Support • TR-369 (USP) • HTTP OTA Firmware Upgrade • Firmware encryption • USIM and Network PLMN Locking Support • Device Factory Default Setting • Remote Management • System log • Configuration Backup/Restore • Device Information |
| Networking Configuration | • DHCP IP address Assignment • Router Operation Support • Built-in DHCP Server for LAN Devices • IPv4, IPv6 DS-Lite Support • NTP Service Support • SIM card locking feature • Network selection and cell locking provision • STUN • SNMP • Port Forwarding • L2TP/PPTP VPN pass through • DDNS • Firewall • Qos • Diagnostics(Ping /Traceroute speedtest) • Auto Reboot • Route(Default route, Static route, Route Status) • Multiple APNs • Router and bridge mode change • Neighbor CELL • Lock CELL |
| Physical | |
| Dimensions | 338(H) X 250(W) X 85(D)mm |
| Weight | <2.5Kg |
| Enclosure | IP 65 |
| Power Protection | +- 6kV |
| Power Supply | 48V Power over Ethernet |
| Power Consumption | < 10W |
| Temperature | • Operating: -30 to 75 °C • Storage: -40 to 85 °C |
| Humidity | 10 % to 95 % non-condensing |
| Certifications | CE FCC |
*Accessibility of some features may vary across regions. Product pictures and display contents on the foregoing pages are provided for reference only. Actual product features and specifications (including but not limited to appearance, colour, and size), as well as actual display contents (including but not limited to backgrounds, UI, and icons) may vary.
*All data in the foregoing pages are theoretical values obtained by IMILINK internal laboratories through tests carried out under particular conditions. For more information, refer to the aforementioned product details. Actual data may vary owing to differences in individual products, software versions, application conditions, and environmental factors. All data is subject to actual usage.
*Due to real-time changes involving product batches, production and supply factors, in order to provide accurate product information, specifications, and features, IMILINK may make real-time adjustments to text descriptions and images in the foregoing information pages, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
