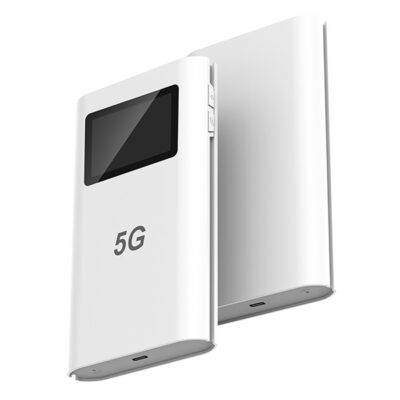

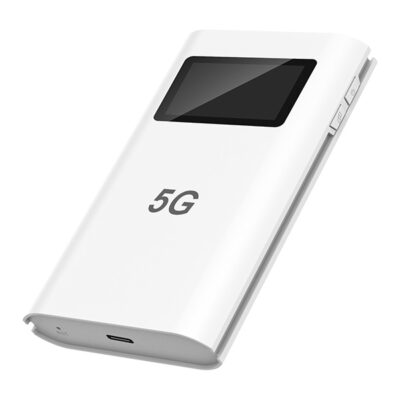

Unlock the power of next-gen connectivity with IM5-X91M 5G MiFi device, designed for speed, security, and portability. Featuring blazing-fast 5G (up to 3.27Gbps) and dual-band Wi-Fi 6, it ensures seamless streaming, gaming, and browsing for up to 8 users.
Enjoy ultra-fast speeds with 5G NR support, delivering up to 3.27Gbps download and 1.25Gbps upload. Dual-mode NSA/SA ensures seamless transitions between networks for uninterrupted browsing and streaming.
Experience smooth connectivity with 2.4GHz (300Mbps) and 5GHz (600Mbps) Wi-Fi 6, supporting up to 8 users simultaneously. Perfect for gaming, video calls, and HD streaming.
| Hardware Parameters | |
| Chipset | MT8863T+SWT6621s |
| Memory | 1GB DDR4+8GB eMMC Android (512MB DDR4+4GB eMMC Linux ) |
| Device Interfaces | • 1 x Multi-purpose Button (Power on/off , Determine the model selection) • 1 x Reset Button • 1 x Select Button • 1 x 4FF Nano SIM Slot |
| USB | Type-C USB 3.0 |
| Display | 2.4 inch LCD or LED |
| Battery | 5000mAh |
| Antenna | 6 x internal cellular antennas 1 x internal 2.4GHz&5GHz WiFi & BLE antennas |
| Network | |
| Protocol | • 3GPP Release 16 NSA/SA operation, Sub-6 GHz • LTE DL Cat 13 / UL Cat 18 |
| 5G NR Modulation | • SCS 15 kHz and 30 kHz • Option 3x, 3a, 3 and Option 2 • UL 256QAM and DL 256QAM modulations |
| 4G LTE Modulation | • 1.4/3/5/10/15/20 MHz RF bandwidths • UL QPSK, 16QAM, 64QAM and 256QAM modulations • DL QPSK, 16QAM, 64QAM and 256QAM modulations |
| Band | • 5G NR : n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n71/n75/n76/n77/n78/ (n79*) • 4G LTE: B1/B3/B5/B7/B8/B18/B19/B20/B21/B26/B28/B32/B71/B38/B40/B41/B42/B43 • 3G: B1/B5/B8 |
| Throughput | • 5G NR NSA Mode: 2.5Gbps (DL) / 1.25Gbps (UL) • 5G NR SA Mode: 3.27Gbps (DL) / 1.25Gbps (UL) • 4G LTE Mode: 400Mbps (DL) / 211Mbps (UL) |
| Wi-Fi | |
| Protocol | • Wi-Fi 6, 802.11b/g/n/ac/ax • 2.4GHz & 5GHz Dual-Band Wi-Fi |
| Throughput | • 2.4 GHz WiFi MIMO 1x1/40MHz 300Mbps • 5GHz WiFi MIMO 1x1/80MHz 600Mbps |
| Max Users | 8 WIFI Connections |
| Software Features | |
| Network Management | • MAC Address Filtering • NAT Firewall • VPN • DMZ • IP passthrough • Static IP |
| Wi-Fi Management | • SSID Broadcast/Hiding • WEP/WPA-PSK/WPA2-PSK • Wi-Fi MAC Filter |
| Security | • Firewall Switch • DMZ • Port Forwarding • Port Filter • IPv4v6 dual stack • DHCP server • DNS • ARP • ICMP • NAT |
| System Upgrade | • Local firmware upgrade • FOTA/PC remote upgrade |
| Remote Management | Web-UI Management |
| Physical | |
| Dimensions | 108*64.5*15.5 mm |
| Temperature | • Operating: 0°C~40°C • Storage: -20°C ~ 70°C |
| Power Supply | 5V/2A Power In (Up to PD3.0/18W) |
| Operating Humidity | 5%~95% (typical) |
| Regulation Compliance | CE |
*Accessibility of some features may vary across regions. Product pictures and display contents on the foregoing pages are provided for reference only. Actual product features and specifications (including but not limited to appearance, colour, and size), as well as actual display contents (including but not limited to backgrounds, UI, and icons) may vary.
*All data in the foregoing pages are theoretical values obtained by IMILINK internal laboratories through tests carried out under particular conditions. For more information, refer to the aforementioned product details. Actual data may vary owing to differences in individual products, software versions, application conditions, and environmental factors. All data is subject to actual usage.
*Due to real-time changes involving product batches, production and supply factors, in order to provide accurate product information, specifications, and features, IMILINK may make real-time adjustments to text descriptions and images in the foregoing information pages, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
