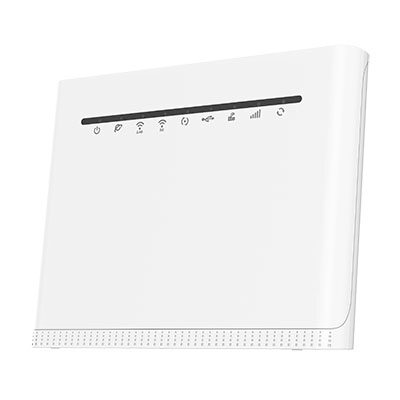

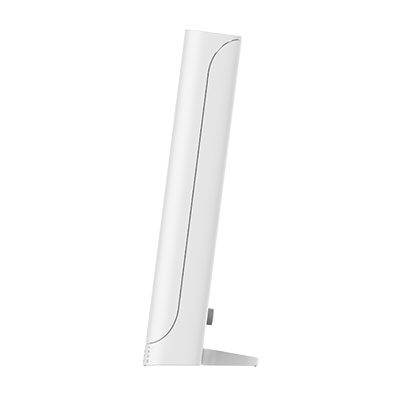

IM4630X Cat6 4G CPE
Experience connectivity with dual-band Wi-Fi 6 (802.11ax). Enjoy combined speeds up to 2974Mbps, ideal for 4K streaming, online gaming, and connecting multiple smart devices simultaneously without any lag.
Supporting multiple 4G LTE bands, this CPE delivers download speeds up to 300Mbps. It's the ideal primary or backup connection for homes and small offices, ensuring you're always online.
Intelligent failover automatically switches your network from a failing fixed-line Ethernet WAN to the high-speed LTE backup connection—and back again—ensuring continuous uptime for critical work, gaming, etc.
| Hardware Parameters | |
| Chipset | BCM6756 +BCM53134O+ASR1828 |
| CPU Frequency | Dual-Core 1.7GHz |
| Memory | 256MB 16-bit DDR3 |
| Flash | 128MB NAND FLASH |
| Device Interfaces | • 4 x RJ45 10M/100M/1000M LAN Ethernet • 1 x RJ45 10M/100M/1000M WAN Ethernet • 1 x Reset Button • 1 x WPS Button • 1 x SIM Card Slot • 1 x USB 2.0 • 1 x Power Switch |
| WIFI | • 2T2R 2.4GHz 802.11b/g/n/ax, 573.5Mbps • 2T2R 5.8GHz 802.11a/n/ac/ax, 2400Mbps |
| WIFI Antenna | 2 x 3. 5dBi dual-band Internal antenna (2.4G and 5.8G WIFI Antenna Combiner ) |
| LTE Antenna | 2 x 2~5dBi Internal antenna |
| LTE Features | |
| Support Band | • LTE FDD: B1/3/5/7/8/20/28 • LTE TDD: B38/B40/B41/B42/B43 • WCDMA: B1/B3/B5/B8 |
| Throughput | • FDD: DL 300Mbps/ UL 50Mbps • TDD: DL 226Mbps/ UL 28Mbps • WCDM: 42Mbps(DL)/5.76Mbps(UL) |
| Output Power | Power class 3, 23dBm |
| WIFI Features | |
| Standard | • 802.11a/b/g/n/ac/ax • 11b/g/n/ax: 2.4~2.4835GHz • 11a/n/ac/ax: 5.150~5.825GHZ • Korea, Japan, ETSI, FCC channels can be selected |
| Modulation Schemes | • OFDM = BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM • DSSS = DBPSK, DQPSK, CCK |
| Transfer Rate | • HE20: up to 286.8Mbps(2.4G/5.8G) • HE40: up to 573.6Mbps(2.4G/5.8G) • HE80: up to 1201Mbps(5.8G) • HE160: up to 2402Mbps(5.8G) |
| Output Power | • 802.11ax:18+/-1.5dBm • 802.11ac:19+/-1.5dBm • 802.11n HT40:19+/-1.5dBm • 802.11n HT20:19+/-1.5dBm • 802.11g:20+/-1.5dBm • 802.11b:21+/-1.5dBm |
| Sensitivity | • 802.11ax: -46dBm @ HE160,MCS11 • 802.11ax: -49dBm @ HE80,MCS11 • 802.11ac: -51dBm @ HT80, MCS9 • 802.11ac: -53dBm @ HT40, MCS9 • 802.11ac: -56dBm @ HT20, MCS8 • 802.11n:-61dBm @ HT40, MCS7 • 802.11n: -64dBm @ HT20, MCS7 • 802.11g:-65dBm @54M • 802.11b:-76dBm @11M |
| Data Rate | • 2974Mbps(max) in 802.11ax with 160MHz channel+802.11ax with 40MHz channel dual mode • 1200Mbps (max) in 802.11ac with 80MHz channel + 802.11n with 40MHz channel dual mode • 866Mbps (max) in 802.11ac mode with 80MHz channel • 300Mbps (max) in 802.11n mode with 40MHz channel • 150Mbps (max) in 802.11n mode with 20MHz channel • 6/9/11/12/18/24/36/48/54Mbps in 802.11g/a mode • 1/2/5.5/11Mbps in 802.11b mode |
| Software Features | |
| Protocols | Wireless main Protocols: • IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • IEEE 802.11n • IEEE 802.11ac • IEEE 802.11ax • IEEE 802.11h(dfs) • IEEE 802.11e(wmm) • IEEE 802.11k/v/r Network main Protocols: • RFC0768 UDP • RFC0791 IP • RFC0792 ICMP • RFC0793 TCP • RFC0826 Ethernet ARP • RFC0894 IP over Ethernet • RFC0922 Broadcasting Internet Datagrams • RFC0950 Internet Standard Subnetting • IEEE802.3 Ethertype • IEEE802.1p • RFC2516 PPP Over Ethernet (PPPoE) • RFC1662 PPP in HDLC-like Framing • RFC1332 PPP Internet Protocol Control Protocol • RFC1042 Transmission of IP Datagrams over IEEE 802 Networks • IPoE (a.k.a IP over Ethernet over AAL5) |
| Wireless Features | • Embedded AP with 8 SSIDs on each Radio • Separate authentication for each SSID • Wmm • AutoChannel • BSD • easyMesh • WPA3/SAE Security |
| Network Features | • IPv4/IPv6 dual stack • IPoE DHCP/Static • PPPoE Dynamic/Static • IPv6 Stateless/Stateful • PPTP, L2TP VPN, OPENSWAN IPSEC VPN • IGMP Proxy and MLD for IPTV • DNS Proxy • DHCP server • NAT, NAPT and ALG |
| Other Features | • QoS • DMZ and Port forwarding(Virtual server) • SPI Firewall, Denial of Service protection • MAC/IP/Port filter • URL filter • DDNS • Static Route • Failover Between ETHWAN and LTE • SNTP • Diagnostics(Ping/Traceroute) • Logs and statistics • Automatic timing restart |
| Management Features | • WEB GUI • Command Tool Telnet/SSH For Debug • TR-069 Remote Management • SNMPv2 • UPNP |
| Physical | |
| Dimensions | 235 x 167 x 56mm |
| Temperature | • Operating: 0°C~40°C • Storage: -30°C ~ 70°C |
| Operating Humidity | 5%~95% (typical) |
| Power Supply | 12V/1.5A |
