IMILINK's 150Mbps Wireless Bluetooth 4.0 Nano USB Adapter, IM150KB allows users to connect desktop or laptop computers to any Wireless-N networks in your home or office. This miniature adapter is designed to be as convenient as possible, and once connected to a computer's USB port, it can be placed there whether on the go or at home. It also has advanced wireless encryption for easy installation.

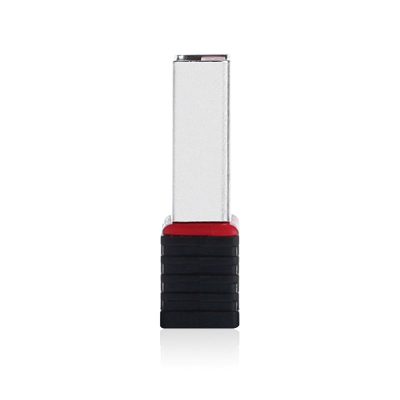

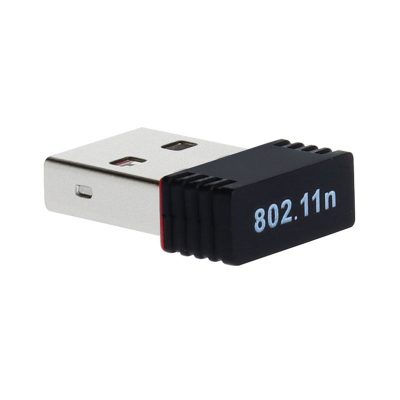

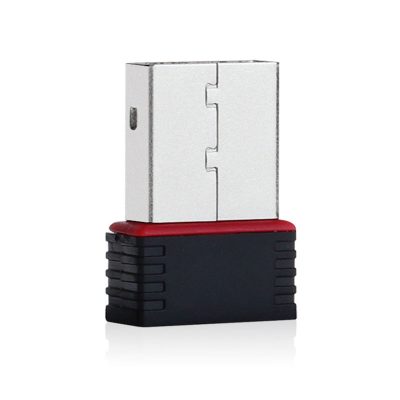

IM150KB adopts a new miniature appearance design, exquisite and compact. It can hardly notice its existence when plugged into a computer. With its miniature size and sleek design, users can connect the bluetooth nano adapter to any USB port and leave it there. There’s no need to worry about blocking adjacent USB interfaces or that the adapter may fall out when moving a connected laptop from place A to B, with the tiny device flush against the USB port.It does not take up too much space and is very convenient to use and carry.

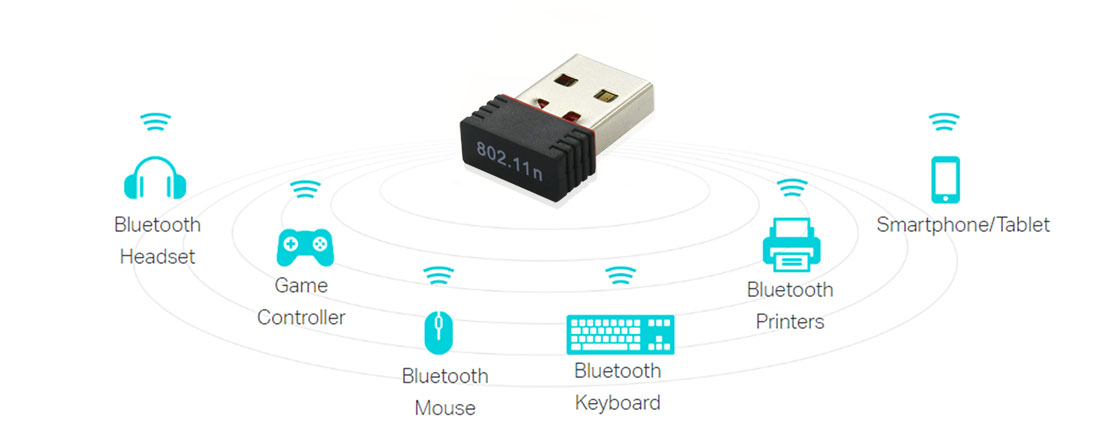

IM150KB makes Non-Bluetooth PCs or laptops Bluetooth-capable. Simply plug in the UB400, connect your Bluetooth devices and enjoy.
IM150KB has a special design for the built-in antenna, which effectively improves the wireless signal receiving capability and enhances the stability of the wireless signal. IM150KB Wireless Bluetooth 4.0 Nano USB Adapter uses 11N wireless technology, the wireless transmission rate is up to 150Mbps, the data transmission in the local area network is more efficient, voice and video, online games, online on-demand is smoother. IM150KB supports WPA-PSK / WPA2-PSK, WPA / WPA2 security mechanisms, and WEP encryption to protect wireless network security in all aspects.
| Item | Description |
| Chipset | Realtek RTL8723BU |
| Bluetooth Version | V4.0 |
| Standard | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Interface | USB2.0/1.1 |
| Frequency Range | 2.4-2.4835GHz |
| Wireless Speed | 11n: up to 150Mbps |
| 11g: 54/48/36/24/18/12/9/6Mbps auto fallback | |
| 11b: 11/5.5/2/1Mbps auto fallback | |
| Working Channel number | 14 |
| Transmit receive type | 1T1R |
| Spread spectrum | DSSS |
| Modulation Type | OFDM,OFDM with PSK,BPSK,16-QAM,64-QAM,CCK,DQPSK,DBPSK |
| Receiver Sensitivity(without Standards antenna) | 135M: -72dBm@10% PER |
| 130M: -72dBm@10% PER | |
| 108M: -72dBm@10% PER | |
| 54M: -72dBm@10% PER | |
| 11M: -85dBm@8% PER | |
| 6M: -88dBm@10% PER | |
| 1M: -90dBm@8% PER | |
| RF Power | 20dBm(MAX EIRP) |
| Antenna Gain | Internal 2dBi Antenna |
| LED Indicator | Status |
| Wireless Security | 64/128 bits WEP |
| WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) | |
| Operating Temperature | 0oC~40oC (32oF~104oF) |
| Storage Temperature | -40oC~70oC (-40oF~158oF) |
| Relative Humidity | 10% ~ 90%RH, non condensation |
| Storage Humidity | 5%~90%RH, non-condensing |
| Support Operating System | WindowsXP/Win7/Vista/Win8/Win10/Linux/Android/MAC |
*The maximum wireless transmission rate is a physical rate derived from the IEEE standard 802.11 specification. Range and coverage specifications are based on test results under normal use conditions. The actual wireless transmission rate and wireless coverage cannot be guaranteed and will change due to the following factors: 1) environmental factors, including building materials, physical objects and obstacles; 2) network conditions, including local interference, traffic and density, Product location, network complexity, network overhead and 3) customer restrictions, including rated performance, location, connection quality and customer condition.
